XR glasses

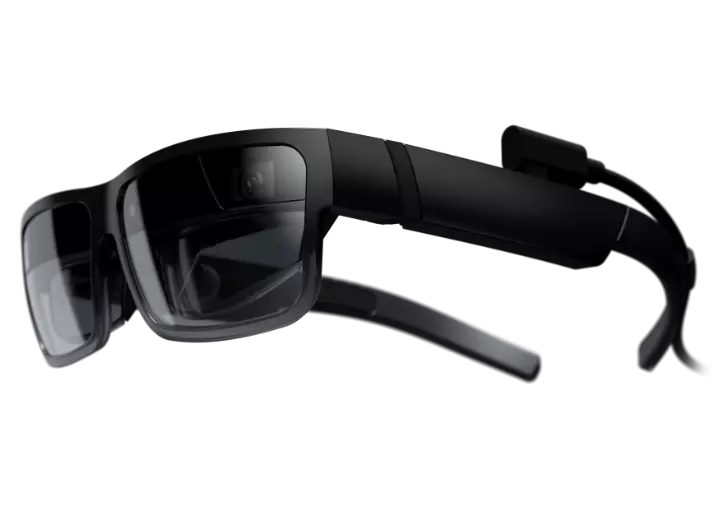

ThinkReality A3
The Lenovo ThinkReality A3 are lightweight enterprise AR smart glasses featuring dual 1080p displays with 45 PPD, Qualcomm XR-1 SmartViewer, dual fisheye cameras for 6DOF tracking, and an 8MP RGB camera. They connect via USB-C to compatible PCs or select Motorola smartphones, enabling up to five virtual monitors for enhanced productivity and privacy. The glasses include integrated speakers and microphones, an ergonomic fit kit, foldable frames with cosmetic and industrial options, and an IP54 rating. Software features include voice, object, image recognition, head/gaze tracking, and barcode reading. The device supports Windows 11 Pro and is optimized for Lenovo ThinkPad laptops and workstations. Accessories include a protective case, prescription inserts, and a removable cable.
Images
Pros and cons
Pros
Strengths called out by generated product content.
- Comfortable and lightweight at approximately 130g
- Provides eye protection compliant with ANSI Z87.1 standards
- Supports multiple virtual monitors for enhanced productivity
- Modular and customizable with interchangeable frames and lenses
- Dust and splash resistant with an IP54 rating
- Powered by Qualcomm Snapdragon XR1 platform for solid performance
- Compatible with select Lenovo ThinkPad laptops and Motorola phones
- Enables secure viewing of sensitive data in public or open office settings
- Fits like sunglasses and offers industrial frame options for durability
- Easy to set up and use out of the box for enterprise AR applications
- Allows prescription lenses to be mounted and easily swapped
- Offers privacy by limiting data visibility to the wearer only
Cons
Tradeoffs and constraints to review before choosing.
- Relatively high price point, making it less accessible for casual experimentation
- Limited compatibility with non-Lenovo or unofficial devices
- Not waterproof; no pressure washing or swimming allowed
- Some users find the design bulky or large for extended wear
- Requires tethering to compatible devices, limiting standalone use
Notes
Context that does not fit neatly as a pro or con.
- Uses freeform prism optics and OLED microdisplays from BOE
- Marketed primarily for enterprise and industrial use cases
- Availability often requires contacting sales representatives
- Offers a tethered AR platform requiring custom apps for mobile AR
- Includes side shields and tint options for different lighting conditions
Release Date
Display
- Color reproduction
- 24 bit2
Display Specs
- Display Resolution (per eye)
- 1920x1080
- Display Resolution
- Dual 1080p AR displays2
- Aspect Ratio
- 16:92
- Field of View
- 40 degrees2
- Field of View (diagonal)
- 40 degrees2
- Refresh Rate
- 60 Hz3
- Virtual Display Brightness
- 200 nits
- Brightness
- 200 nits3
- Brightness Control
- 200 nits
- Brightness Control Levels
- 200 nits
- Brightness & Volume Control Levels
- 200 nits
- Color Modes
- Full color
- Color Gamut
- 100 %3
- Color Depth
- 24 bit2
- Color Accuracy
- Yes3
- Color Mode Selection
- 2 color
- Contrast Ratio
- 10,000 1
- Display Device Type
- AR smart glasses2
- Dynamic Dimming Technology
- No2
- Eye-Care Technology
- 60 hz
- Eye Safety Technology
- ANSI Z87.1 compliant safety lenses with side shielding4
- Eye Care Certification
- ANSI Z87.14
Dimensions
- Width
- 190 mm3
- Height
- 46 mm2
- Depth
- 50 mm3
- Size Length
- 14.5 cm3
- Frame Dimensions
- {"type":"object","value":{"depth":180,"width":170,"height":45}}3
- Folded Dimensions
- {"type":"object","value":{"width":180,"height":50,"length":170}}3
- Folded Length
- 14.5 cm6
- Folded Width
- 15.5 cm6
- Folded Height
- 5.5 cm6
- Unfolded Length
- 14.5 cm6
- Unfolded Width
- 16.5 cm6
- Unfolded Height
- 4.5 cm6
- Without Headstrap Length
- 15.5 cm2
- Without Headstrap Width
- 15.5 cm2
- Without Headstrap Height
- 5.5 cm2
- Maximum Fit Width
- 180 mm3
- USB-C Cable Length
- 1.5 m3
Weight
Battery
Camera
Processor & Compute
Memory & Storage
Connectivity
Controls & User Interface
Ergonomics & Fit
- Form Factor
- Eyewear-style smart glasses2
- Frame Material
- Durable lightweight frames5
- Frame Style
- Eyewear-style, Foldable3
- Design
- ergonomic fit kit, foldable, lightweight, sunglasses-style3
- Ergonomic Design
- Yes6
- Modularity and Fit
- Tool-free modularity with multiple nosepieces and ear horn extensions for customizable fit4
- Mounting Options
- Ergonomic fit kit, Prescription inserts available2
- Prescription Ready
- Prescription inserts available, Prescription lenses mounted to nosepiece2
- Myopia Diopter Adjustment
- Prescription inserts available2
- Refractive Error Adjustment
- 4 to2
- Interpupillary Distance Range
- 58 mm to 72 mm2
- Eye Relief
- 15 mm3
- Comfort Features
- 3 levels3
- Wearing Experience Suggested Wearing Time
- 8 hrs
Audio
Comfort & Wear
- Wearing Time Suggested
- 8 hrs3
Design & Build
- Materials
- durable, lightweight3
Safety & Durability
Software & Platform
Product Info & Variants
- Model Number
- 207
- Prototype Description
- 3D Visualization, Glasses with Industrial Frame, Remote Expert, Tethered-attach AR to Windows PC, Virtual Monitors, Wearable AR5
- Notes
- 8MP RGB camera, Comes in two editions: PC Edition and Industrial Edition, Dual 1080p AR displays, Ergonomic fit kit, Foldable for portability, Includes Lenovo Virtual Display Manager software, Includes TechViz Share&Viz application (separate license required), Industrial Edition connects to select Motorola flagship phones, Integrated speakers and microphone, IP54 rated for dust and water resistance, IP54 rating, Lightweight and ergonomic design for comfort, PC Edition connects to compatible Lenovo ThinkPad laptops via USB-C, Prescription inserts available, Prescription lens inserts available, Room-scale tracking in six degrees of freedom, Supports 6 degrees of freedom tracking, Supports up to five virtual displays with PC Edition, USB-C connection to PC23
- Features
- Reference Design for Android XR Ecosystem, 3D visualization, 5 virtual displays, 8MP RGB camera, Compatible with Lenovo ThinkPad laptops and Motorola phones, Compatible with Lenovo ThinkPad mobile workstations and select Motorola phones, Compatible with Lenovo ThinkPad P Series mobile workstations, Compatible with select Lenovo ThinkPad laptops and Motorola phones, Dual 1080p AR displays, Dual fisheye cameras, Ergonomic fit kit, Foldable frame, Foldable frame for portability, Impact-resistant safety lenses with side shields, Industrial Edition supports tethering to Motorola phones, Integrated speakers and microphone, IP54 rating, Lenovo Virtual Display Manager software, Lenovo Virtual Display Manager software included, Lightweight (4.6 oz./130 gm), multiple virtual monitors, Noise-suppressing microphones, PC Edition supports tethering to compatible ThinkPad laptops, Prescription inserts available, Prescription lens, Prescription lens compatibility, Prescription lens inserts available, Privacy: only user can see virtual displays, Qualcomm XR-1 SmartViewer processor, remote assistance, Removable cable, Room-scale tracking in six degrees of freedom, Stereo speakers, TechViz Share&Viz application, TechViz Share&Viz software, TechViz Share&Viz software support (separate license required), Tool-free modularity with multiple nosepieces and ear horn extensions, training, USB-C connection to PC, workflow, 3 noise-suppressing microphones, 6 DoF tracking, DisplayPort 1.4 connectivity, Prescription lenses mountable, Qualcomm Snapdragon XR1 Platform, USB-C 3.2 Gen 1 connectivity5
- Included Accessories
- Protective carrying case, Prescription inserts available, Removable cable5
- Optional Accessories
- Prescription inserts, Protective carrying case, Removable cable2
Visual & Optical
Reference & Certification
Facts
- Resolution
- 1080p per eye2
- Headset Design
- ergonomic fit kit, foldable, glasses-style, lightweight3
- Perceived Brightness
- 200 nits
- Sensors
- 8MP RGB camera, Dual fisheye cameras, Microphone, Room-scale tracking in six degrees of freedom, Speakers5
- Battery Cell Composition
- Lithium Ion4
- Display
- 60 hz2
- Use Environment
- 3D Visualization, and Construction (AEC), Architecture, Energy and Utilities, Engineering, Enterprise, Industrial, Logistics, Manufacturing, Remote Assistance, Training, Workflow Support5
