XR glasses

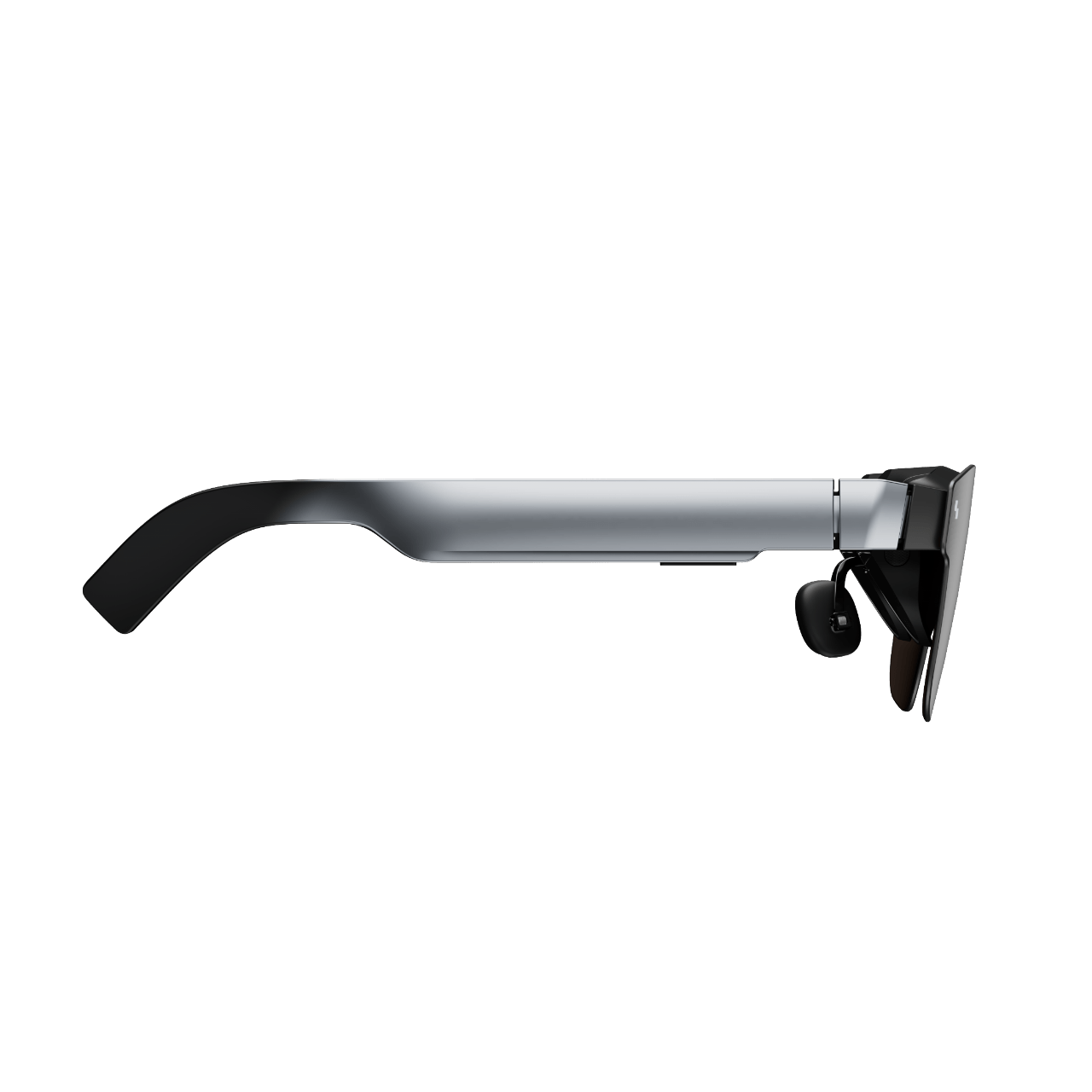

Rayneo Air 3s

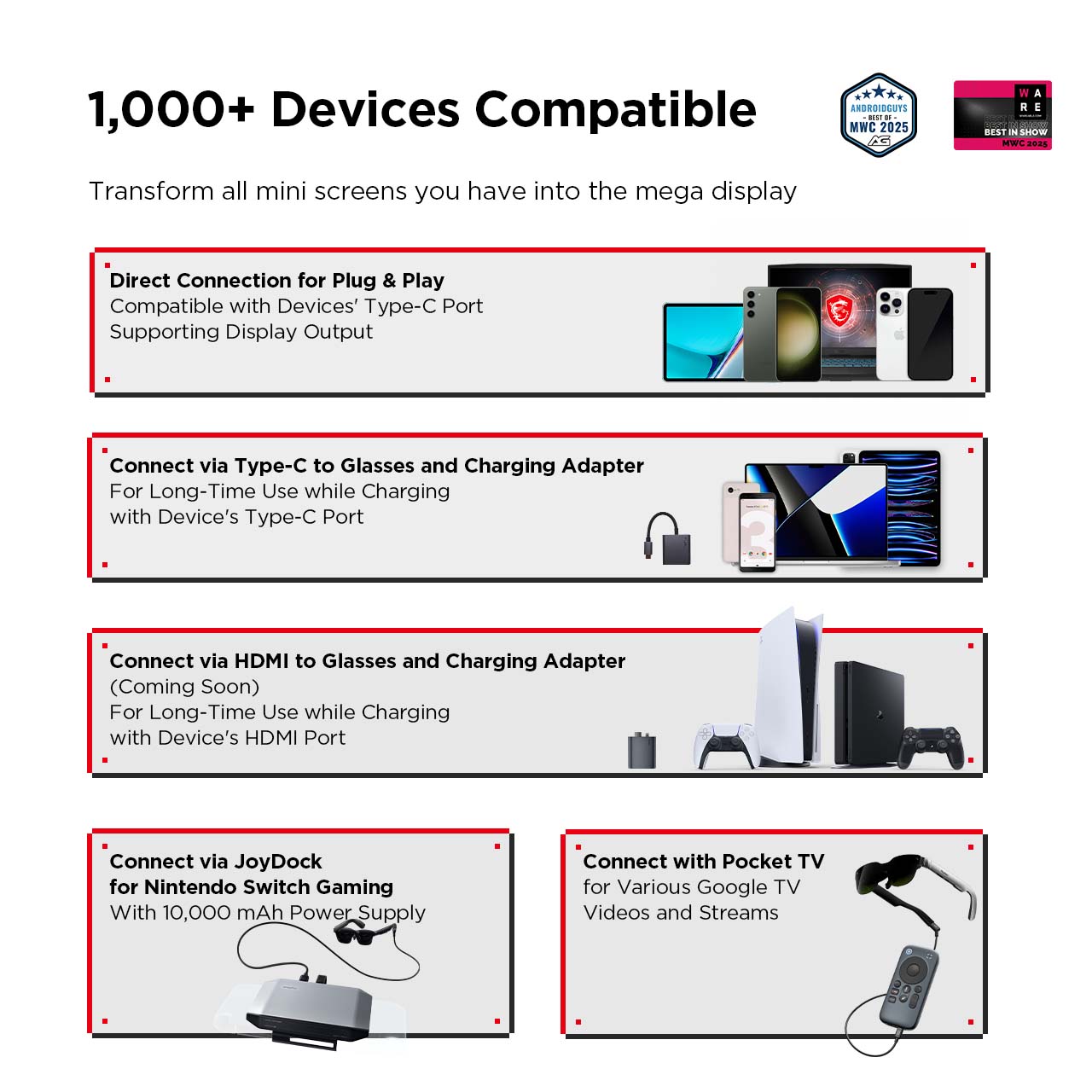

The RayNeo Air 3s are lightweight AR glasses featuring a 201-inch virtual display with 1080p resolution and 120Hz refresh rate. They use a HueView Micro-OLED display with 98% DCI-P3 color accuracy, 200,000:1 contrast ratio, and 1200 nits brightness for vivid visuals. Eye comfort is enhanced by TÜV Rheinland/SÜD low blue light and flicker-free certifications with 3840 Hz PWM dimming. The glasses include quad speakers with spatial audio and Whisper Mode for privacy. They connect via USB-C (DisplayPort Alt Mode) and support devices including iPhone, Android, PC, Switch, and PS5. Multiple display modes optimize viewing for gaming, movies, and eye protection. Accessories like JoyDock enable enhanced gaming experiences. The package includes prescription-lens frames and cleaning accessories.
Images
Pros and cons
Pros
Strengths called out by generated product content.
- Affordable price compared to other XR glasses
- Vivid colors and sharp image quality
- Good brightness for clear viewing
- Lightweight and comfortable to wear
- Wide 50 degree field of view
- High refresh rate (120Hz) beneficial for gaming
- Compatible with many USB-C devices
- Improved edge-to-edge clarity compared to previous models
- Eye-friendly with reduced flicker due to high frequency dimming
- Good sound quality
- Portable and convenient for travel
- Effective for immersive movie and gaming experiences
Cons
Tradeoffs and constraints to review before choosing.
- No Bluetooth connectivity support
- Some users experience screen positioning issues affecting visibility
- Lacks advanced features like head tracking and multiple screen configurations
- Not a standalone device; requires connection to external hardware
- Some software limitations reported
- 3D photo effect depends heavily on source image quality
Notes
Context that does not fit neatly as a pro or con.
- Design resembles contemporary sunglasses with tinted lenses
- Better brightness on Pro model compared to standard Air 3s
- Edges of the display can be less clear on some rival models
- Works well with external accessories like Pocket TV
Release Date
Display
- Color reproduction
- 98 bit1
Display Specs
- Display Resolution (per eye)
- FHD
- Display Type
- micro-OLED1
- Aspect Ratio
- 16:91
- Field of View
- 463
- Field of View (diagonal)
- 46 degrees3
- Refresh Rate
- 120 hz2
- Virtual Display Brightness
- 1,200 nits2
- Brightness
- 1,200 nits4
- Brightness Control
- 202
- Brightness Control Levels
- 205
- Brightness & Volume Control Levels
- 202
- Color Modes
- Eye-Protection, Game, Movie, Professional, Standard, Vision Boost2
- Color Gamut
- 98 %1
- Color Depth
- 24
- Color Accuracy
- Yes1
- Color Vibrancy
- 145% sRGB vibrancy1
- Color Mode Selection
- 6 color2
- Contrast Ratio
- 200,000:1 infinite contrast1
- Contrast
- 200,0001
- Transmittance
- 93 %
- Display Device Type
- micro-OLED1
- Dimming Technology
- 3840 Hz DC+PWM hybrid dimming1
- Dynamic Dimming Technology
- Yes1
- Electrochromic Dimming Levels
- 3840 Hz DC+PWM dimming1
- Electrochromic Film Optical Transmittance
- 93 %
- Electrochromic Film Haze
- Low haze electrochromic film
- Electrochromic Film Discoloration Time
- 10 secs
- Electrochromic Film Lenses
- OptiCare™ electrochromic film lenses
- Eye-Care Technology
- OptiCare™ 3840 Hz DC+PWM dimming1
- Eye Safety Technology
- OptiCare™️ with 3840 Hz PWM+DC dimming technology1
- Eye Care Certification
- Blue Light Filtering
- Yes
- Flicker-Free Visuals
- Yes
Dimensions
- Width
- 154.3 mm
- Height
- 47.4 mm
- Depth
- 47.4 mm
- Size Length
- 17.65 cm
- Available Sizes
- 176.5mm*154.3mm*47.4mm
- Frame Dimensions
- {"type":"object","value":{"depth":47.4,"width":154.3,"height":176.5}}4
- Folded Dimensions
- {"width":154.3,"height":47.4,"length":57.8}
- Folded Length
- 5.78 cm
- Folded Width
- 15.43 cm
- Folded Height
- 4.74 cm
- Unfolded Length
- 17.65 cm
- Unfolded Width
- 15.43 cm
- Unfolded Height
- 4.74 cm
- Unfolded Depth
- 47.4 mm
- Without Headstrap Length
- 17.65 cm
- Without Headstrap Width
- 15.43 cm
- Without Headstrap Height
- 4.74 cm
- Maximum Fit Width
- 154.3 mm4
- USB-C Cable Length
- 1 m1
Weight
Battery
Camera
Processor & Compute
Memory & Storage
Connectivity
Controls & User Interface
Ergonomics & Fit
- Form Factor
- eyewear-style1
- Frame Material
- Prescription-lens frame1
- Frame Style
- Prescription-lens frame1
- Design
- eyewear-style, prescription-lens frame, eyewear-style near-eye display1
- Ergonomic Design
- Yes2
- FlexiFit system
- Adjustable Nose Pads, Flexible Temples
- Modularity and Fit
- Carry Case, Nose Pad Component, Prescription-lens Frame
- Mounting Options
- Prescription-lens Frame8
- Prescription Ready
- Supports customized nearsighted lenses4
- Myopia Diopter Adjustment
- and comfortable to wear, clear, Support for customized nearsighted lenses that are high-definition2
- Refractive Error Adjustment
- 2 to
- Refractive Error Range
- -6 to
- Interpupillary Distance Range
- 14x7 mm EyeBox accommodates 93% of interpupillary distances2
- Interpupillary Distance Coverage
- 93 %2
- Eye Relief
- 4,000 mm1
- Comfort Features
- 9 levels2
- Wear Detection
- Yes
- Wearing Experience Wear Detection
- Yes
- Wearing Experience Suggested Wearing Time
- 8 hrs
- Wearing Experience Connection
- USB-C
Audio
Compute & Performance
- Latency M2P
- 10 ms
Comfort & Wear
- Wearing Time Suggested
- 6 hrs1
Design & Build
- Materials
- Metal, Plastic, Metal hinges, Plastic frame
Safety & Durability
- Safety Certifications
- TUV Rheinland Eye-Care Certification1
- Robustness Standards
- TUV Rheinland eye-care certification
- Durability
- OptiCareTM 3840 Hz PWM+DC dimming technology, TUV Rheinland eye-care certification
- Drop Resistance
- 1.5 meters
- Ingress Protection Rating
- 54
- HDCP
- Yes
Software & Platform
- Operating System
- compatible with PC, compatible with phones, compatible with Switch1
- Platform
- Android, iOS6
- Developer SDK Access
- RayNeo Mirror Studio, RayNeo XR APP for Android, RayNeo XR APP for iOS8
- Device Management Software
- RayNeo Air 3s software
- Scalability
- Works with PC, Works with phones, Works with Switch
Product Info & Variants
- Model Number
- 31
- Notes
- △E<2 color accuracy, 000:1 infinite contrast, 145% sRGB vibrancy, 200, 3840 Hz DC+PWM dimming, 98% DCI-P3 coverage, and user manual, carry case, data cable, glasses cleaning cloth, HueViewTM️ micro-OLED screen, Includes prescription-lens frame (sample), nose pad component, OptiCareTM️ technology, Projects an image equivalent to viewing a screen at 4 meters1
- Features
- △E<2 color accuracy, 000:1 infinite contrast, 1-Year Warranty & Lifetime Firmware, 1200 nits ultra-brightness, 145% sRGB vibrancy, 15% reduction of clamping force, 15% reduction of clamping force for comfort, 20 brightness levels, 20-level brightness adjustment and volume control, 200, 201" virtual screen, 3-level nose pad positioning, 4 speaker design, 6 color modes: Standard, 9 levels of adjustment for temples, 9 levels of temple adjustment, 98% DCI-P3 coverage, Accommodates 93% of interpupillary distances, AI Integration, Audio, Audio spatial sound, Camera, Carry case included, Compatible with all your devices (Dp-port available), Compatible with devices supporting USB-C DisplayPort Alt Mode, Compatible with DisplayPort (DP) via USB-C, Compatible with DisplayPort via USB-C, Compatible with phones, customized nearsighted lenses, Data cable included, deeper bass, DisplayPort (DP) via USB-C, Dual acoustic chambers for immersive private audio, Dual opposing acoustic chambers, Dual opposing acoustic chambers for immersive private audio, Eye-care certified, Eye-care OptiCareTM technology, Eye-care technology OptiCareTM️, Eye-Protection, Eye-safe design projecting image equivalent to viewing a screen at 4 meters, Eye-safe image projection equivalent to viewing a screen at 4 meters, Four speaker design, Game, Glasses cleaning cloth included, High color accuracy, High volume and superior sound, HueView micro-OLED screen with 98% DCI-P3 coverage, HueViewTM 2.0, HueViewTM 2.0 display technology, HueViewTM 2.0 micro-OLED display, HueViewTM 2.0 micro-OLED screen, HueViewTM micro-OLED screen, HueViewTM micro-OLED screen with 98% DCI-P3 coverage, Immersive spatial sound, Immersive spatial sound by self-developed algorithms, Movie, Multiple color modes, Nose pad component included, One-button mode switch (Game/Movie/Standard), Open-ear audio, Open-ear audio with phase-cancelling algorithm, OptiCareTM️ eye care technology, OptiCareTM️ technology, PC, PCs, Phase-Cancelling Algorithm, phones, Plug & Play with no app needed, Plug & Play with USB-C DisplayPort Alt Mode, Prescription-lens frame, Prescription-lens frame included, Professional, PS5, richer mids, Self-developed immersive spatial sound algorithms, Sharper highs, Spatial audio, Steam Deck, Switch, TUV Rheinland eye-care certification, TUV SUD certified low blue light and flicker-free, TUV SUD certified low blue light and flicker-free protection, TUV SUD Low Blue Light and Flicker Free dual certification, Ultimate comfort for long-term use, User manual included, Vision Boost, Whisper Mode 2.0, Whisper Mode 2.0 for audio privacy, Whisper ModeTM, World's first 4 speaker design, World's first 4 speaker design with Whisper ModeTM, 1200 nits brightness (Pro model), Eye-safe design, Micro OLED display, Portable theater and gaming arena, USB-C connectivity, Works with phones16234
- Included Accessories
- Carry Case, Data Cable, Glasses Cleaning Cloth, Nose Pad Component, Prescription-lens Frame, RayNeo Air 3s, User Manual8
- Optional Accessories
- USB-C to glasses adapter
Visual & Optical
Reference & Certification
Facts
- Resolution
- 3,840 pixels1
- Headset Design
- Carry Case, Glasses Cleaning Cloth, Nose Pad Component, Prescription-lens Frame1
- Perceived Brightness
- 1,200 nits2
- Sensors
- Accelerometer, Gyroscope, Eye tracking
- Standby Time
- 7 days
- Battery Cell Composition
- Other Than Listed4
- Display
- 120 hz1
- Use Environment
- PC, phones, Switch
